Wood Furniture Automatic Painting Line
Model: Wood Painting Line
This automatic painting line is designed for wood furniture and musical instruments, handling workpieces such as table legs, chair backs, and guitar bodies with high efficiency and consistent finish.
.jpg)
Key Selling Points
- High Output: Achieves 1422 pieces per 8-hour shift, maximizing productivity for large-scale production.
- Versatile Workpiece Compatibility: Handles solid wood and MDF workpieces, from chair components to guitar bodies, adapting to diverse wood product lines.
- Compact Design: Standard workpiece size up to 610*710*1400mm, with 300mm pitch, optimizing space utilization.
- Adjustable Speed: Line speed adjustable from 2000 to 6000 mm/min (design speed 4000 mm/min), offering flexibility for different coating requirements.
- Durable Construction: Main frame in carbon steel; spray booth and pipeline in stainless steel, ensuring long service life and easy cleaning.
Technical Specifications
| Workpiece Type | Table legs, chair backs, sitting boards, front legs, sitting frames, chairs, etc. |
| Workpiece Material | Solid wood, MDF |
| 8-Hour Output | 1422 pieces/shift |
| Standard Workpiece Size | 100(L)*50(W)*1400mm(H) |
| Maximum Workpiece Size | 610*710*1400mm(H) |
| Pitch | 300mm/hang |
| Design Line Speed | 4000mm/min (adjustable 2000~6000mm/min) |
| Energy Use | Electricity |
Models and Options
This line can be configured for various applications: Guitar painting line, piano painting line, musical instruments painting line, wood beds painting line, dining tables painting line, wood chairs painting line, wood speaker painting line.
Materials and Structure
Main frame: Carbon steel. Spray booth and pipeline: Stainless steel.
Applications
Designed for the wood furniture and musical instrument industry, this painting line efficiently coats table legs, chairs, guitar bodies, piano parts, and other wood products.
Customization
Customized turnkey projects are available, with options for robotic spraying and fully automated PLC intelligent control to meet specific production needs.
Case Study
Our lines have been used by furniture manufacturers and musical instrument makers for over 5-10 years. Clients report coating uniformity meeting high-end standards, 30% paint consumption reduction, 90% cut in dust defects, and 40% production efficiency increase.
FAQ
What types of workpieces can this line handle?
It handles table legs, chair backs, sitting boards, front legs, sitting frames, chairs, and similar wood furniture components, as well as musical instruments like guitars and pianos.
What materials can be coated?
The line is compatible with solid wood and MDF workpieces.
What is the production capacity?
It produces 1422 pieces per 8-hour shift.
Can the line speed be adjusted?
Yes, the line speed is adjustable from 2000 to 6000 mm/min.
What are the main construction materials?
The main frame is carbon steel, while the spray booth and pipeline are stainless steel.
Inquiry Information
For quotes and further details, please contact us:
Email: attractivechina@gmail.com
Phone/WhatsApp: +86 135-8061-6025
Image Filename and Alt Suggestions

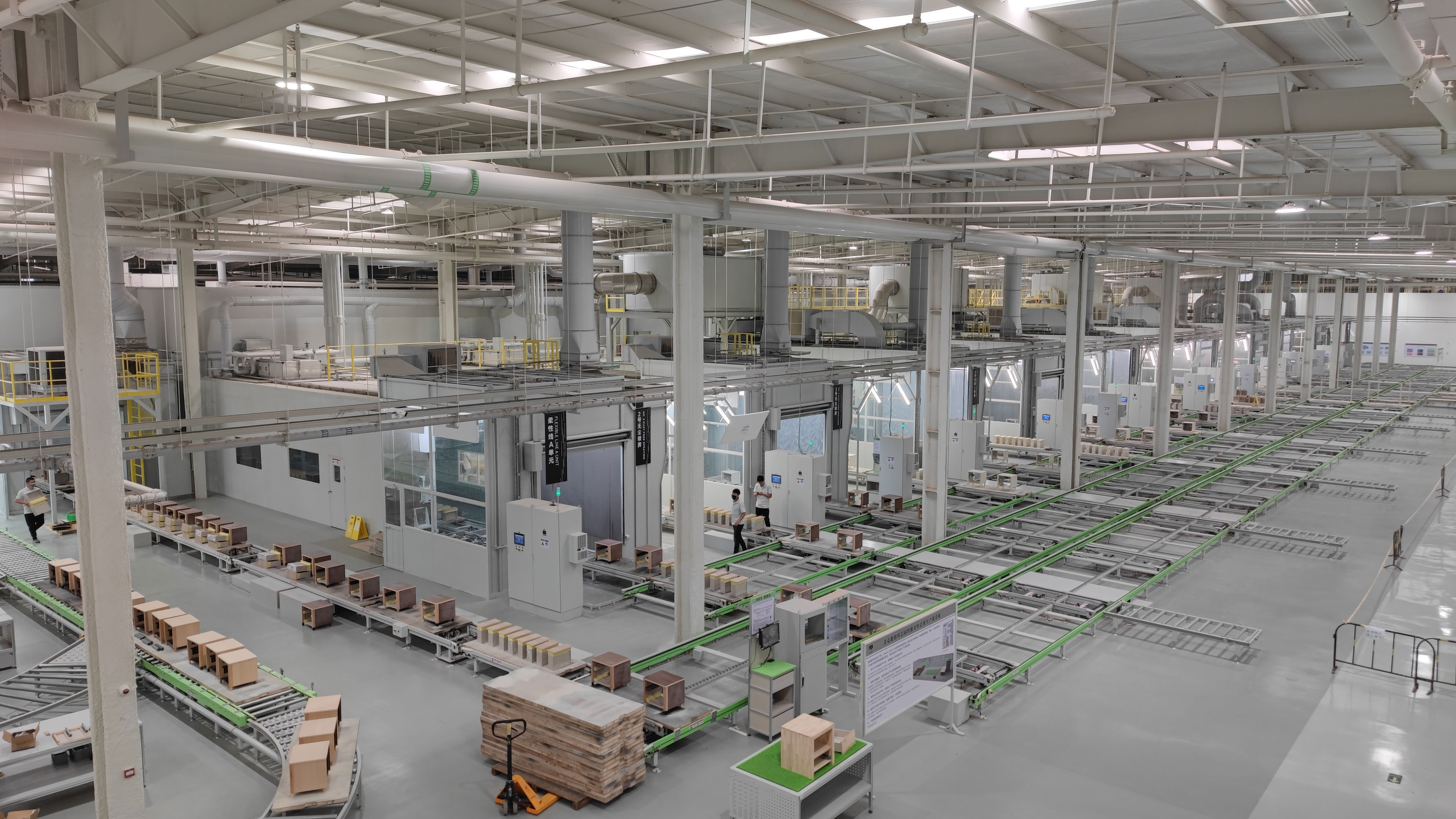

- Skid-Conveyor-System-(4).jpg - Alt: Wood furniture painting line with skid conveyor system
