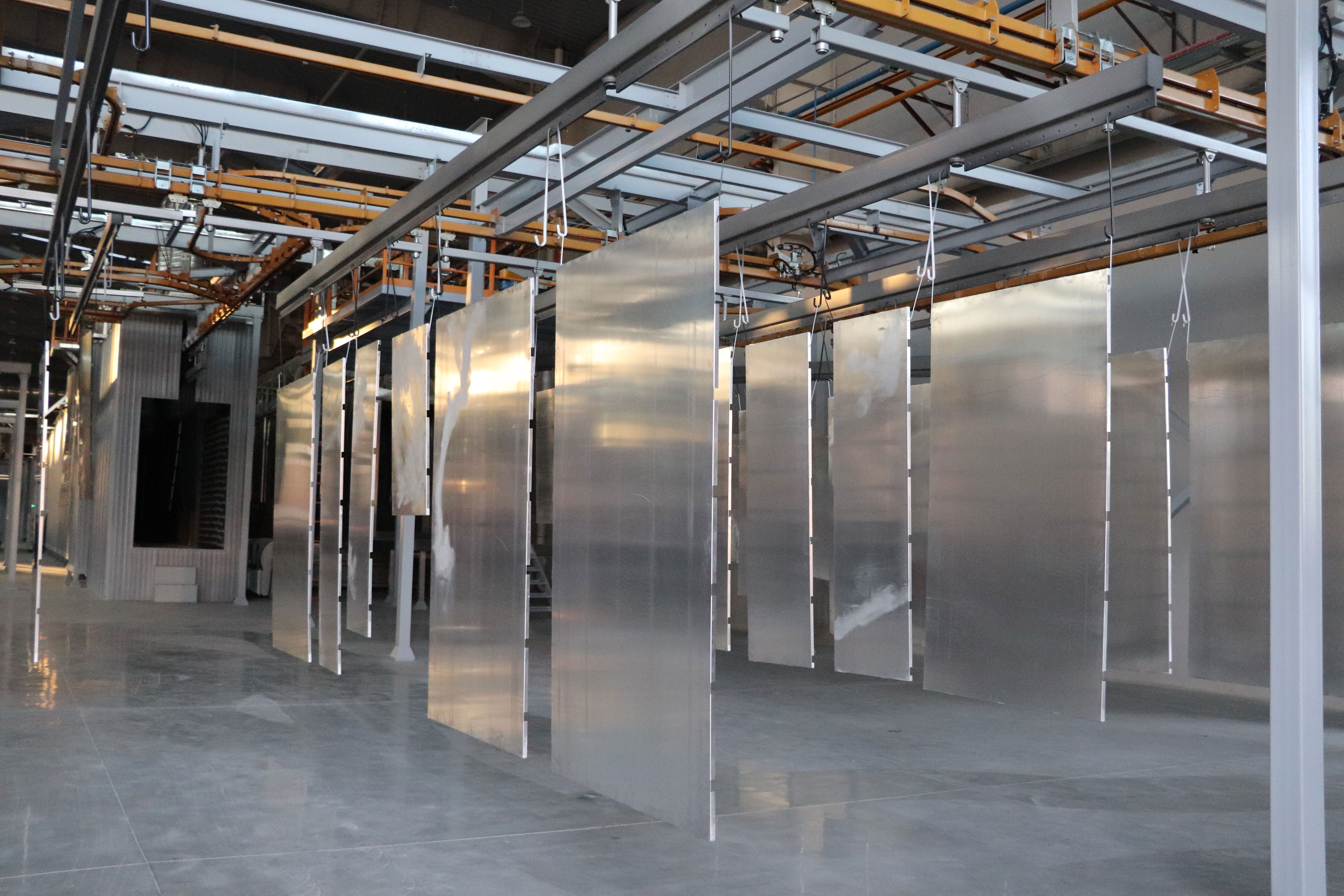

Automated Aluminum Panel Coating Line
Our automated metal coating line is designed for high-volume finishing of aluminum panels and profiles. Ideal for industries producing building and houseware products, this system handles workpieces up to 7000mm (L) x 2000mm (W) x 2200mm (H) per hanger, with a maximum productivity of 5000 m²/day. The line operates 300 days a year, 20 hours a day, ensuring reliable continuous production.
Key Selling Points
- ✓ High Productivity: Achieve up to 5000 m² per day, handling large batch orders efficiently.
- ✓ Large Part Capacity: Accommodates workpieces up to 7000mm in length, suitable for panels and profiles.
- ✓ Adjustable Conveyor Speed: Conveyor belt speed adjustable from 2000 to 4000 mm/min for process flexibility.
- ✓ Robust Construction: Carbon steel main frame with stainless steel coating chamber and pipelines for durability.
- ✓ Automated Control: Fully automated conveying system with mechanical and free-moving conveyors for reduced labor.
Technical Specifications
| Parameter | Value |
|---|
| Workpiece Name | Aluminum panels and profiles |
| Workpiece Material | Aluminum |
| Max Workpiece Size | 7000mm (L) x 2000mm (W) x 2200mm (H), 1 pc/hanger |
| Productivity | Max 5000 m²/day |
| Conveyor Speed | 3000 mm/min (adjustable 2000-4000 mm/min) |
| Coating Method | Reciprocating + manual |

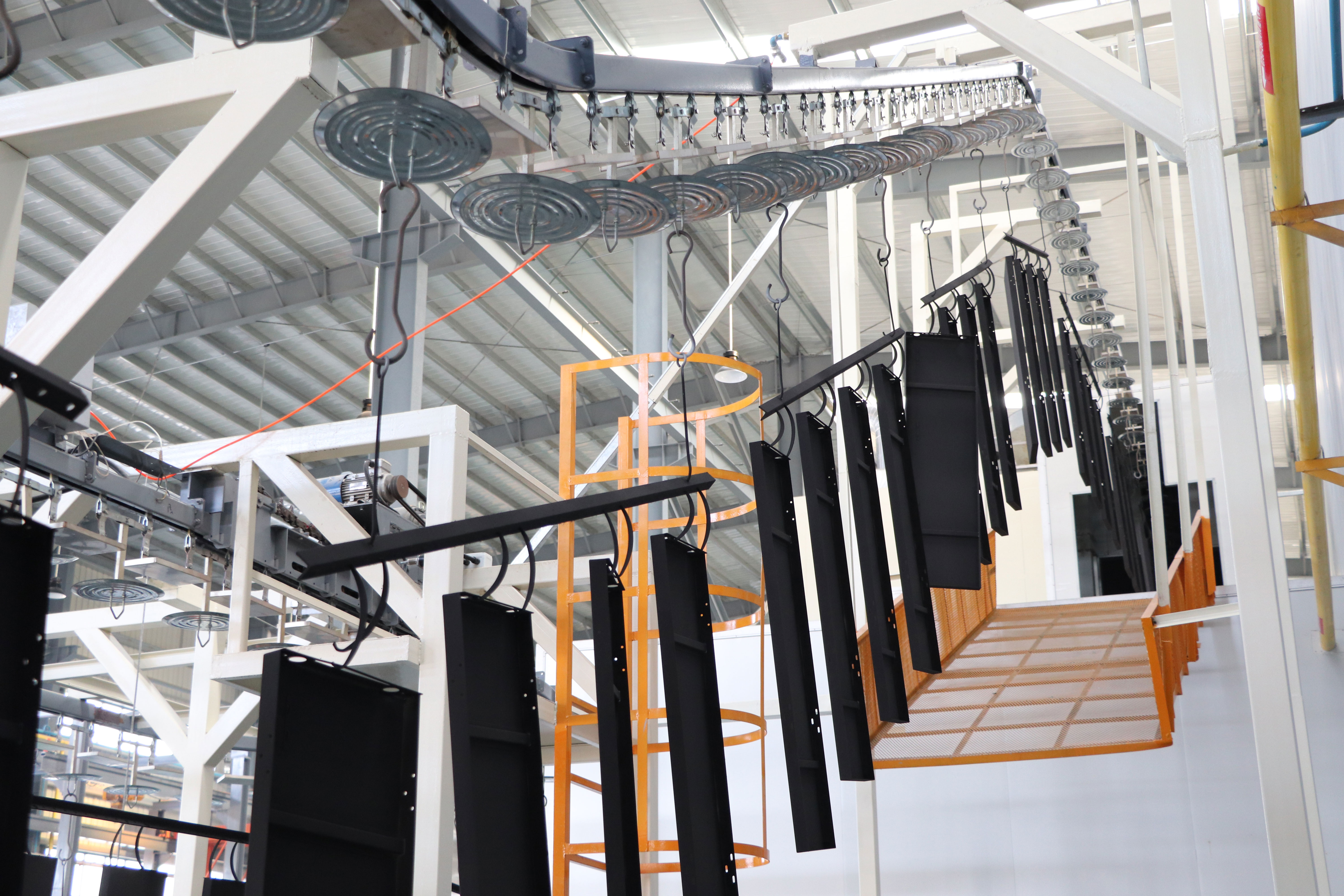

| Transportation Method | Mechanical and free-moving conveyor |
| Working Hours | 300 days/year, 20 hours/day |
Models and Options
Our lines are customizable for various workpiece sizes and productivity requirements. We offer solutions tailored to different industries.
Materials and Structure
The main frame is made of carbon steel, while the coating chamber and pipelines are constructed from stainless steel, ensuring long service life and corrosion resistance.
Applications
Ideal for coating aluminum panels, profiles, and other large metal components in the building and houseware industries.
Customization
We offer customized solutions including system design, PLC programming, and special features to meet your specific production needs.
Case Study
Our clients include export-oriented hardware plants, metal furniture/building material companies, and other manufacturers. 15 fully automated metal coating lines have been delivered successfully.
FAQ
What is the maximum workpiece size the line can handle?
The maximum workpiece size is 7000mm (L) x 2000mm (W) x 2200mm (H) per hanger.
What is the daily production capacity?
The line can achieve a maximum productivity of 5000 m² per day.
Can the conveyor speed be adjusted?
Yes, the conveyor speed is adjustable from 2000 to 4000 mm/min.
What materials are used in the line's construction?
The main frame is carbon steel, and the coating chamber and pipelines are stainless steel.
What is the minimum order quantity?
Our MOQ is 2 units.
What payment terms are accepted?
We accept 50% T/T deposit, 40% T/T before shipment, and 10% T/T upon installation completion.
Inquiry Information
For further details or a quote, please contact us. Our team is ready to assist you.
- Contact: Attractivechina
- Email: attractivechina@gmail.com
- Tel: +86 135-8061-6025
- WhatsApp: +86 135-8061-6025
